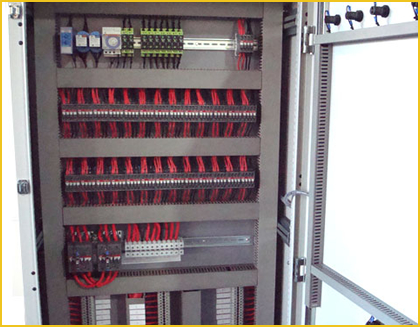

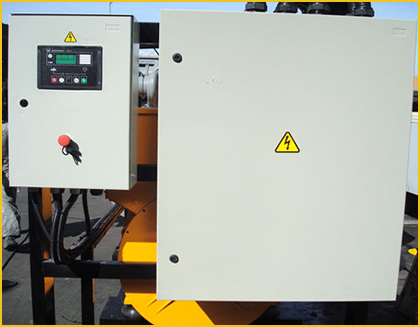

The enclosure control panel is assembled at our factory, by several computerized machines to punch, cut, and bend the metal sheets to come up with the latest designs for the control panels.
Our specialized engineers control the inlet and the outlet wirings to protect the function of the engine alternator assembly and to avoid faulty wiring problems after sales.
The enclosure is painted with durable heat-treated and powder-coated paints with the off-white color
Features and protection items:
1 voltmeter with phase selector switch
2. frequency
3. hour run meter
4. lubrication oil pressure gauge
5. water temperature gauge
6. battery condition voltmeter
7. protection circuitry board.
8. ignition key
9. emergency alarm stop push button
10. frequency meter
11. indicating Led's
12. Engine running
13. low battery
14. High water temperature
15. Low lubrication oil pressure
16. Set mounted circuit breakers, 3 poles.
17. Low and high oil pressure Protection
18. High water Protection
19. Over Speed Protection

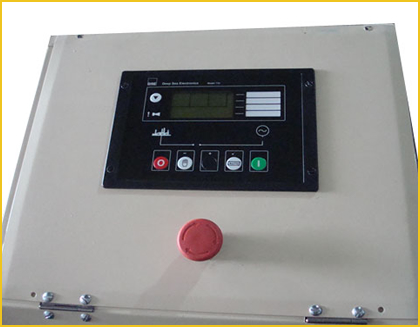

Functions of the Automatic Control Panel :
•Facilitates automatic startup of the Generating Sets during mains failure within pre-determined parameters.
•Facilitates generated power supply into the supply network as soon as the pre-scribed parameters are reached.
•The automatic control panel monitors the engine and alternator parameters through special protections.
•Automatic changeover from Generating set to mains once mains current parameters have been reached.
•Facilitates a period of time for the current to stabilize.
•Facilitates a programmed shutdown period for the Generating set engine to cool down gradually.
•Controls service intervals.
•Controls alternator current for battery charging and supply to the Automatic Control Panel.
